Description
Overview

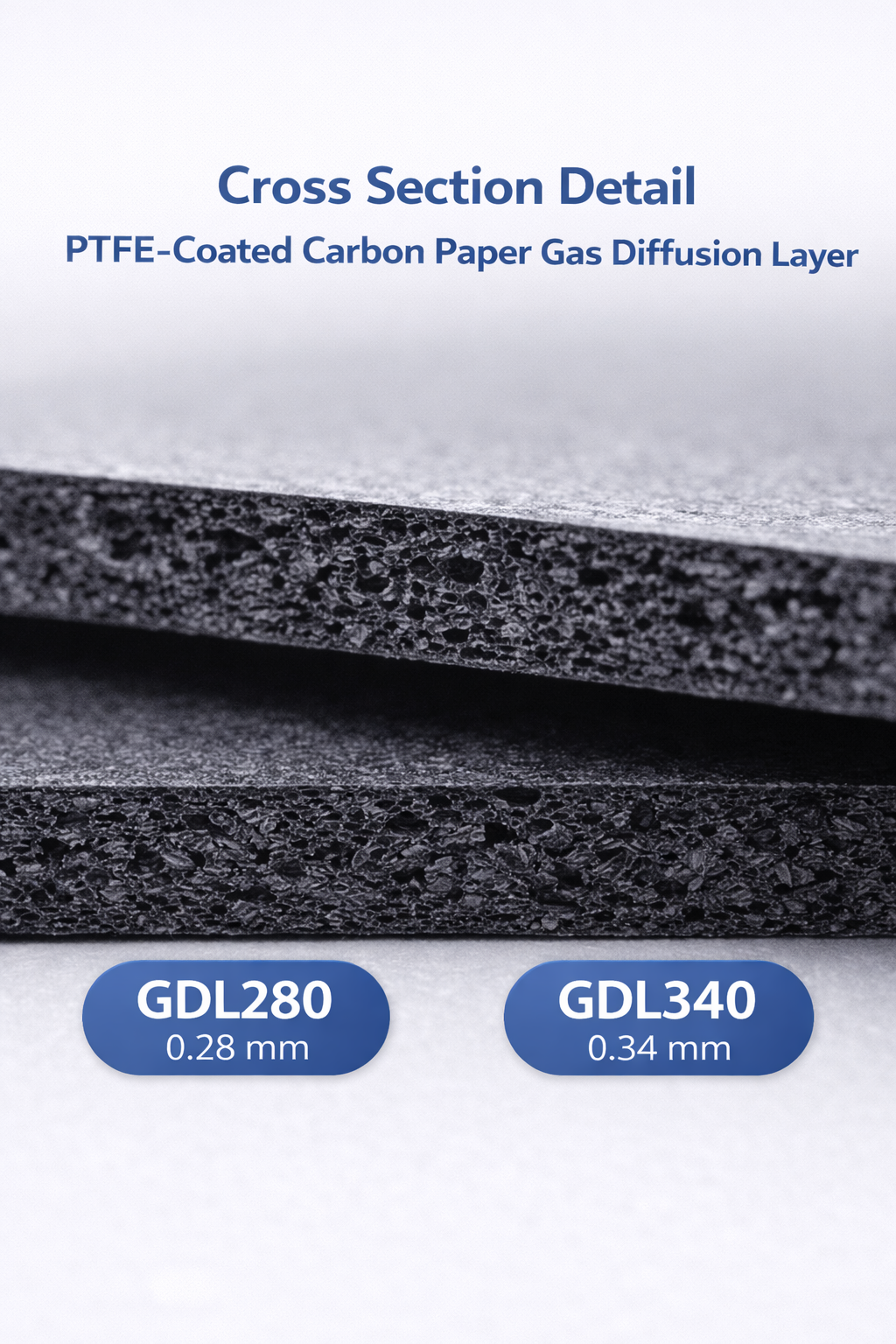

GDL280 and GDL340 are carbon papers with porous layer and PTFE treatment, designed for use as gas diffusion layers in PEM fuel cells, water electrolyzers and other electrochemical devices. They provide effective gas transport, electrical conductivity and mechanical support within electrode assemblies. Belonging to the same product family, GDL280 has a typical thickness of 0.28 mm and GDL340 has a typical thickness of 0.34 mm. Both grades offer low through-plane resistance, good air permeability and reliable mechanical strength, making them suitable for research, pilot-scale and industrial hydrogen energy applications.
Key Features
- Carbon paper with porous layer and PTFE treatment
- Suitable for PEM fuel cells and water electrolyzers
- Low through-plane resistance for efficient conductivity
- Good air permeability for gas transport performance
- Reliable tensile strength and structural stability
- Available in two thickness grades: GDL280 and GDL340
Technical Specifications
| Property | GDL280 | GDL340 | Unit |
|---|---|---|---|
| Product Type | GDL280 | GDL340 | — |
| Thickness | 0.28 | 0.34 | mm |
| Basic Weight | 100 | 125 | g/m² |
| Air Permeability | <200 | <200 | sec Gurley |
| Through-Plane Resistance | <10 | <10 | mΩ·cm² |
| Tensile Strength (MD) | 37 | 45 | N/cm |
| Tensile Strength (XD) | 33 | 36 | N/cm |
| Flexural Modulus (MD) | 4000 | 4600 | MPa |
| Flexural Modulus (XD) | 1400 | 2400 | MPa |
Applications
- PEM fuel cells
- Water electrolyzers
- Gas diffusion layer (GDL) assemblies
- Hydrogen energy systems
- Research, pilot-scale and industrial applications
Commercial Note
Prices shown on this page are indicative reference prices and may vary depending on order quantity, sheet size, packaging format and market conditions. Listed prices exclude VAT, shipping and any custom cutting or converting services. Bulk orders, customized dimensions and distributor cooperation are available upon request. Please contact us for detailed quotations and technical support.
