Description
Overview

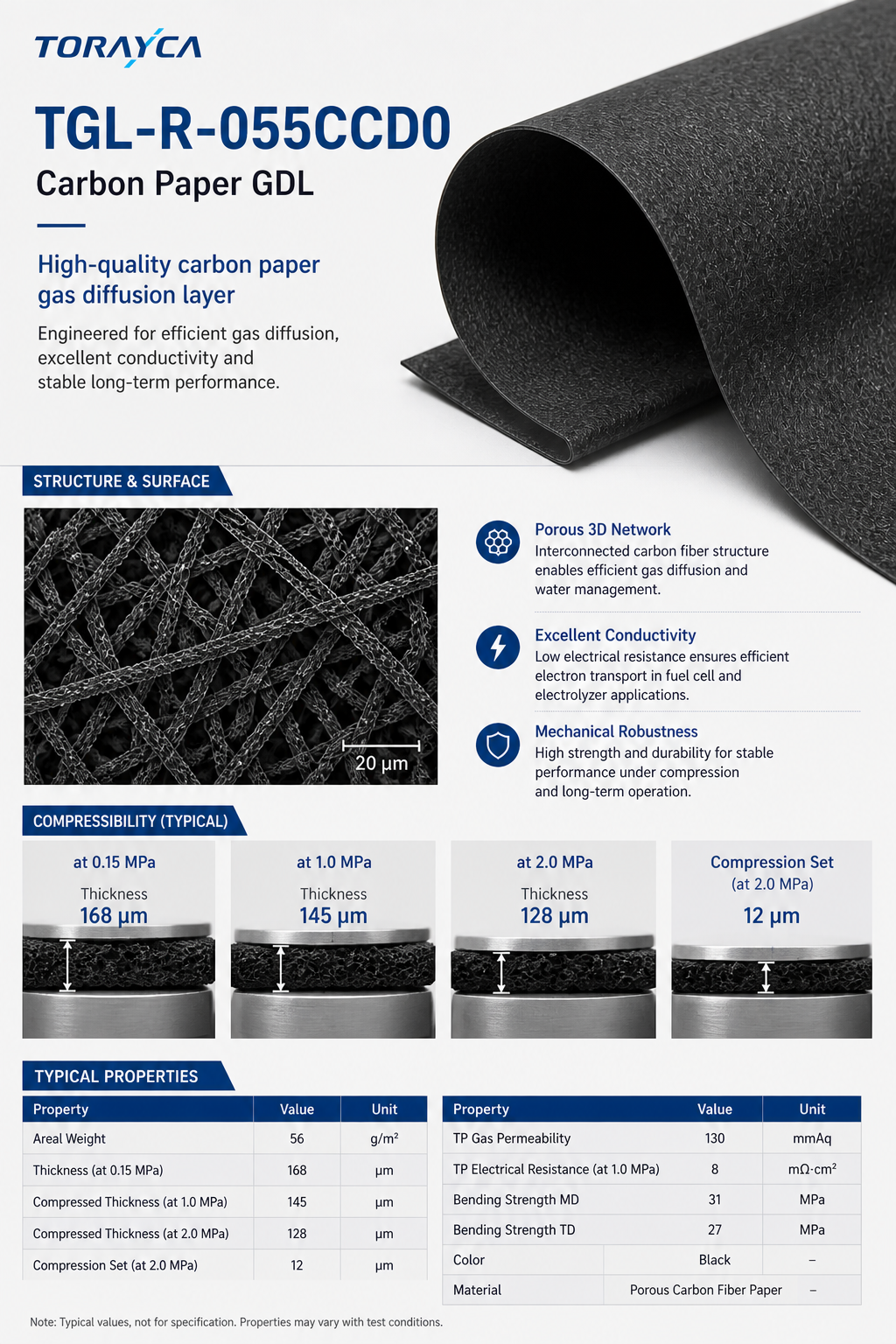

Torayca TGL-R-055CCD0 is a carbon paper gas diffusion layer designed for PEM fuel cells, water electrolyzers and other hydrogen energy applications. As a porous carbon fiber substrate, it helps support gas distribution, water management and electrical conductivity within the membrane electrode assembly. With a typical thickness of 168 µm and stable mechanical performance, TGL-R-055CCD0 is suitable for laboratory research, pilot-scale testing and industrial electrochemical systems requiring reliable gas diffusion and conductive support.
Key Features
- High-quality carbon paper gas diffusion layer material
- Designed for PEM fuel cells and water electrolyzer applications
- Porous carbon fiber structure for efficient gas distribution
- Good electrical conductivity for MEA and cell stack integration
- Stable compressibility and mechanical strength
- Suitable for laboratory research, pilot production and industrial hydrogen systems
Technical Specifications
| Property | TGL-R-055CCD0 | Unit |
|---|---|---|
| Product Type | Carbon Paper Gas Diffusion Layer | — |
| Model | TGL-R-055CCD0 | — |
| Areal Weight | 56 | g/m² |
| Thickness at 0.15 MPa | 168 | µm |
| Compressed Thickness at 1.0 MPa | 145 | µm |
| Compressed Thickness at 2.0 MPa | 128 | µm |
| Compression Set at 2.0 MPa | 12 | µm |
| TP Gas Permeability | 130 | mmAq |
| TP Electrical Resistance at 1.0 MPa | 8 | mΩ·cm² |
| Bending Strength MD / TD | 31 / 27 | MPa |
| Material Structure | Porous Carbon Fiber Paper | — |
Applications
- PEM fuel cells
- Water electrolyzers
- Gas diffusion layers for MEA fabrication
- Hydrogen energy systems
- Electrochemical research and testing
- Fuel cell stack development and pilot production
Commercial Note
Prices shown on this page are indicative reference prices and may vary depending on quantity, sheet size, roll format, packaging requirements and market conditions. Listed prices exclude VAT, shipping and any custom cutting or packaging services. Bulk orders, customized dimensions and distributor cooperation are available upon request. Please contact us for detailed quotations and technical support.
